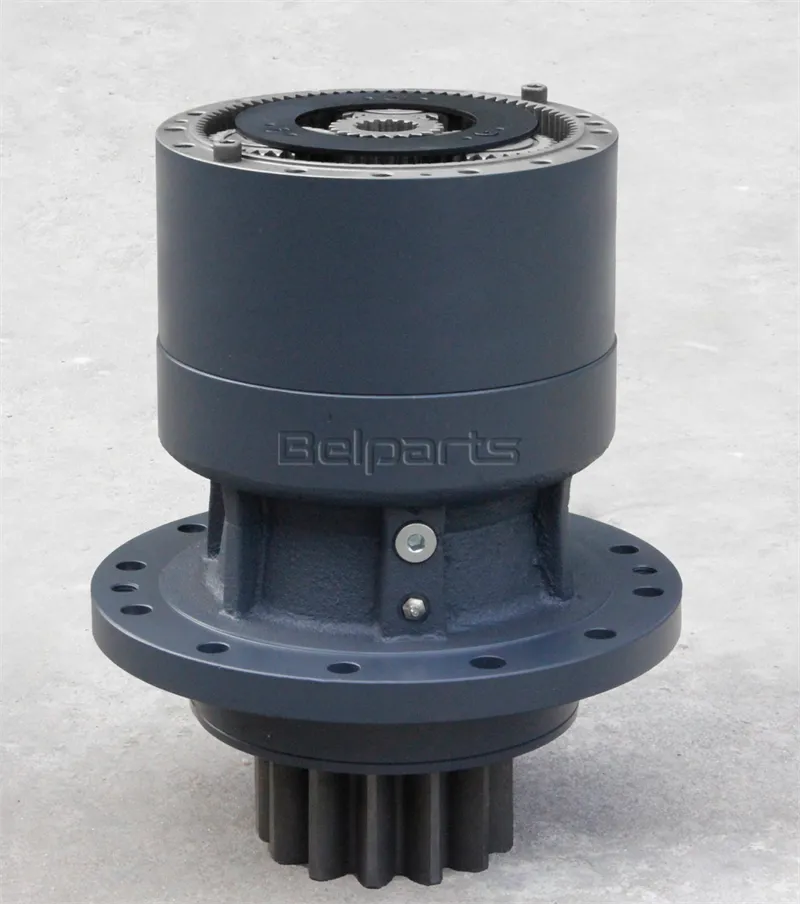

Doosan excavator parts DX235NLC-5 slewing reduction 130426-00020 Swing Gearbox
| Part Name | Excavator final drive |
| Model | DX235NLC-5 |
| Part Number | 130426-00020 |
| Place of Origin | Guangzhou China |
| Warranty | 6 Months |
| Item Condition | New |
| Brand | Belparts |
| MOQ | 1 Piece |
| R210-7 | 31N6-10210 | SWING MOTOR ASSY R210-7 |
| EC210 | 14552686 | SWING MOTOR ASSY EC210 |
| CAT325 | 191-2693 | SWING GEAR BOX CAT325 |
| PC220-7 | 206-26-00400 | SWING GEAR BOX PC220-7 |
| EC460 | 14521444 | SWING GEAR BOX EC460 |
| R220-9 | 39Q6-11100 | Swing motor assy R220-9 39Q6-11100 |
| DX340 | K1007543A | SWING MOTOR ASSY DX340 |
| PC200-8 | 706-7G-01170 | SWING MOTOR ASSY PC200-8 |
| CAT330D | 266-7922 | Swing motor |
| EC220D | 14552686 | Swing motor |
| EC240 | 14542163 | swing gearbox |
| EC360B | 14619955/14668227 | swing gearbox |
| EC360B | 14630401/14659488 | swing gearbox |
| EC360B | 14635750/14573100 | Swing motor assy |
| EC380D | 14680015 | swing gearbox |
| EC140 | 14524188 | Swing motor |
Working principle
Oil suction process: The plunger moves backwards, the pump chamber volume increases, forming a vacuum, and the hydraulic oil in the oil tank enters the pump chamber under atmospheric pressure.
Oil pressure process: The plunger moves forward, the pump chamber volume decreases, the hydraulic oil is compressed, the pressure increases, the oil outlet valve is pushed open, and high-pressure oil enters the hydraulic system.
performance parameter
Displacement: The volume of oil discharged by the pump shaft per revolution determines the working speed and force of the excavator.
Pressure: The pressure of the oil at the pump outlet determines the working capacity of the excavator.
Rotational speed: The rotational speed of the pump shaft affects the flow rate and lifespan of the pump.
Efficiency: The ratio of output power to input power of a pump, reflecting energy loss.
